DMG-X

Scroll Down

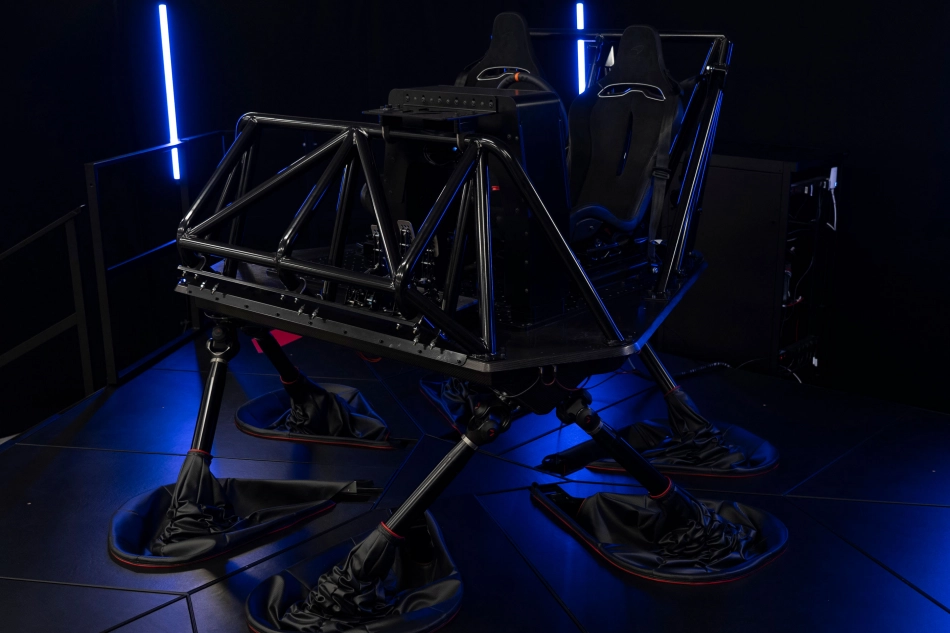

DMG-X is optimised for high payload and our very highest fidelity with larger verticle, pitch and roll excursions. Adopting patented DMG technology and featuring unrivalled bandwidth of over 100Hz in every degree of freedom and only 3-4ms latency, DMG-X is uniquely suitable for many automotive applications. In particular the frequency range is suitable for testing Ride Comfort and NVH studies. In addition, the fidelity of the simulator also makes this a capable solution for chassis dynamic handling and for vehicles with greater travel, such as SUVs. DMG–X can be installed in a range of environments. Full details on request.



DMG-X Specs

Nominal Payload250 kg - 750 kg
System Response
Motion Bandwidth>100 Hz in all DOFs
Motion Latency3-4 ms
Maximum Excursion
Longitudinal±250 mm
Lateral±250 mm
Heave±200 mm
Roll±15°
Pitch±15°
Yaw±15°
Combined Lateral-Yaw150 mm@10°
Combined Lateral-Longitudinal Excursion Radius250 mm
MAXIMUM VELOCITY
Translational1.5 m/s
Rotational>100 °/s
MAXIMUM ACCELERATION
Surge, Sway, Heave15 m/s2
Roll, Pitch, Yaw1000 °/s2

Image Gallery

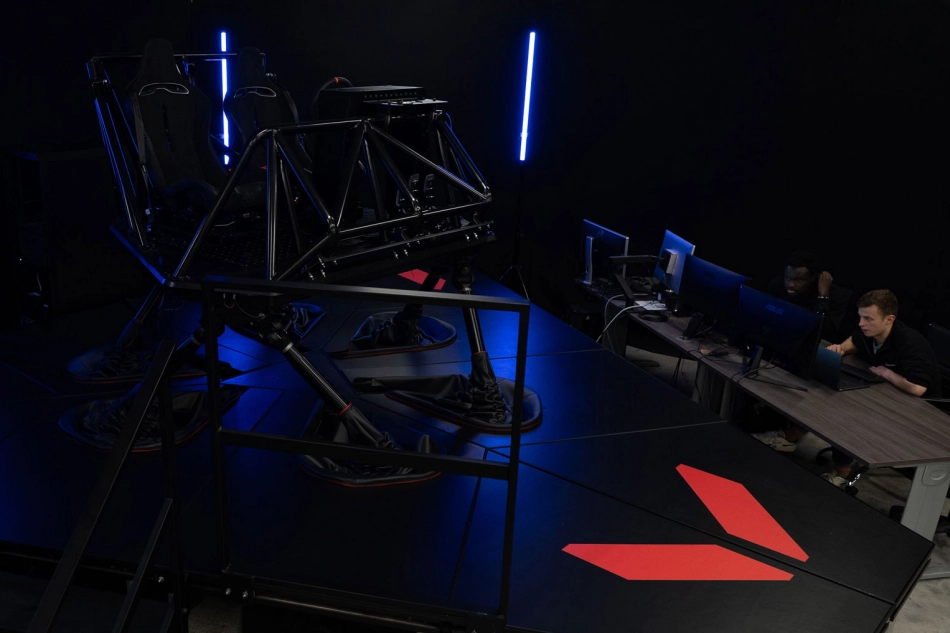

Image Gallery image 1

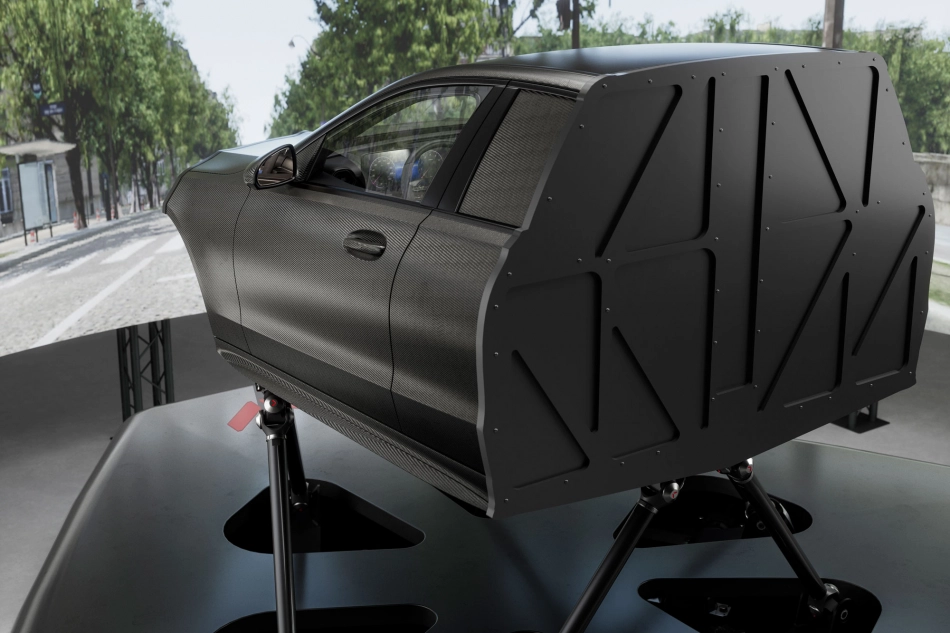

Image Gallery image 2

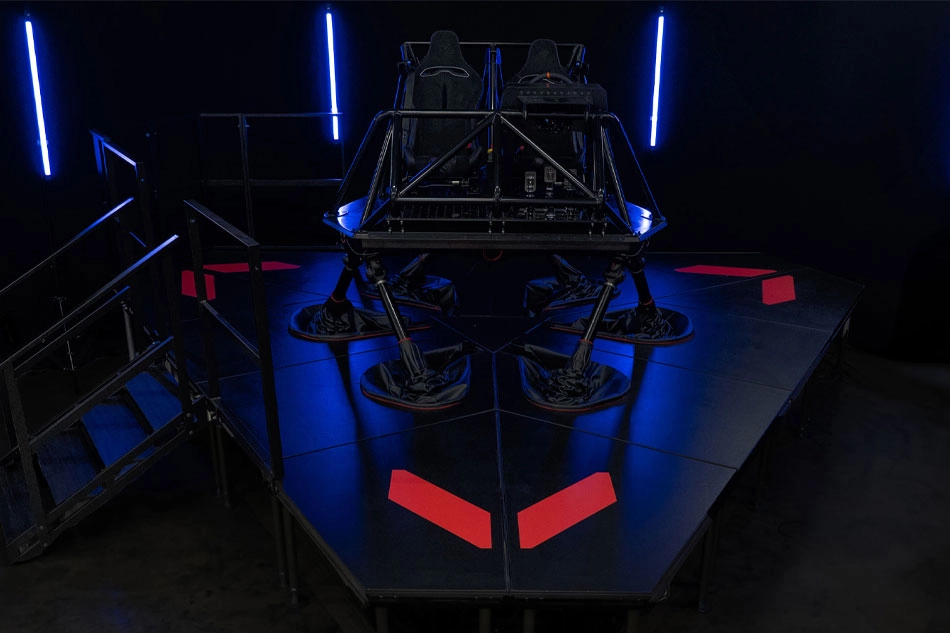

Image Gallery image 3

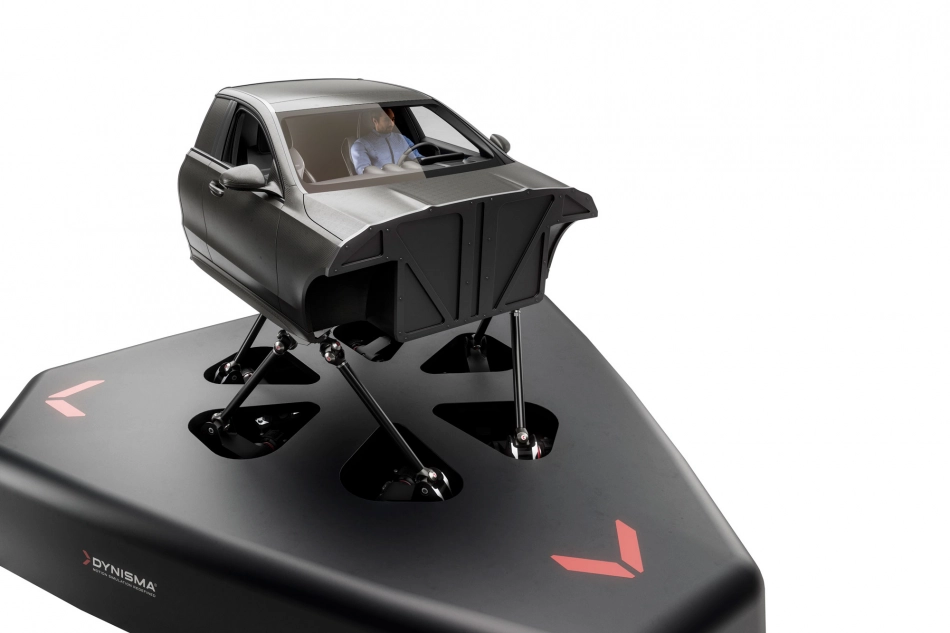

Image Gallery image 4

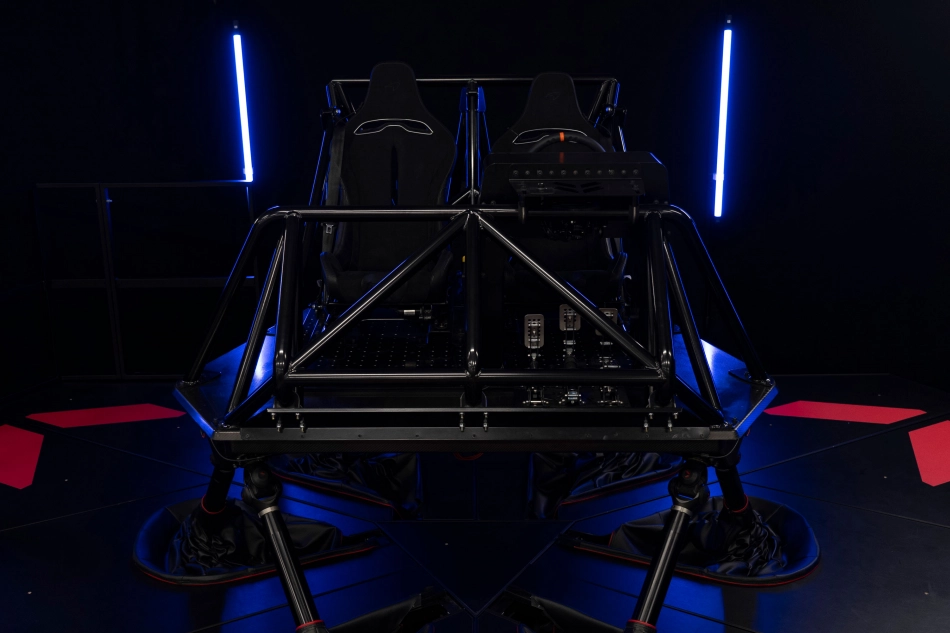

Image Gallery image 5

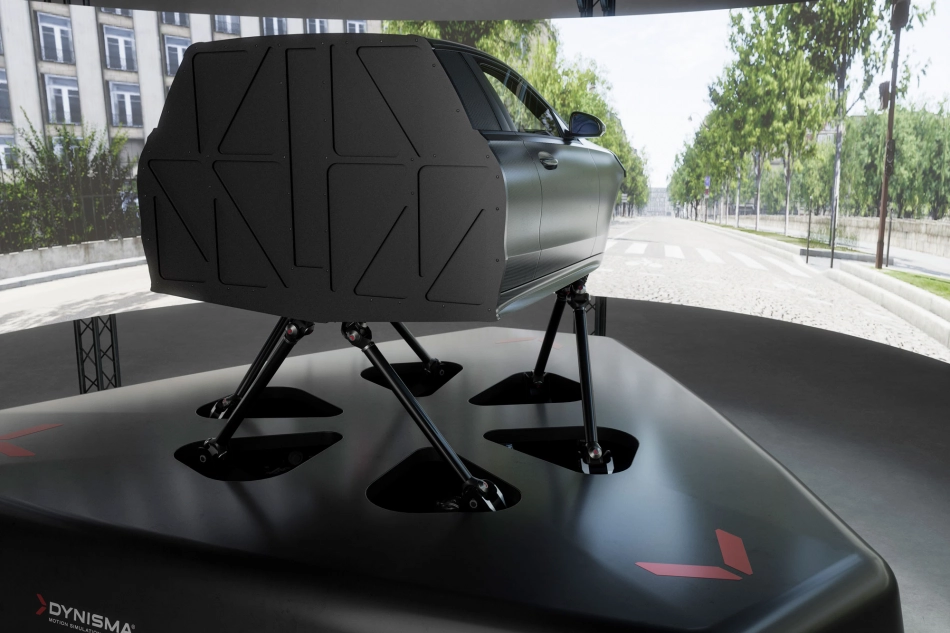

Image Gallery image 6


BENEFIT OF HIGH BANDWIDTH

Greater bandwidth is a core focus of the DMG philosophy.

High bandwidth facilitates ride comfort and NVH evaluation in its purest form, without the need for additional shakers which are trypically needed on conventional motion platforms. A real driving experience contains information at frequencies far greater than 60Hz, including road noise, engine vibration, ABS vibration and high fidelity vehicle dynamics feedback.

The human body is very sensitive to small changes – by accurately transferring this information to the driver, DMG can provide a far more realistic and immersive driving experience.



BENEFITS OF LOW LATENCY

With latency as low as 3-4ms, DMG can deliver prompt vehicle dynamics feedback. This means the driver can react faster to events such as oversteer and means that visual stimuli are provided faster than even 240Hz projectors are able to update.



Customizable

For motorsport or automotive applications, any type of chassis can be designed, built and integrated to the simulator. This includes custom build chassis/cockpits, replicas of vehicle interiors, or prototypes.
